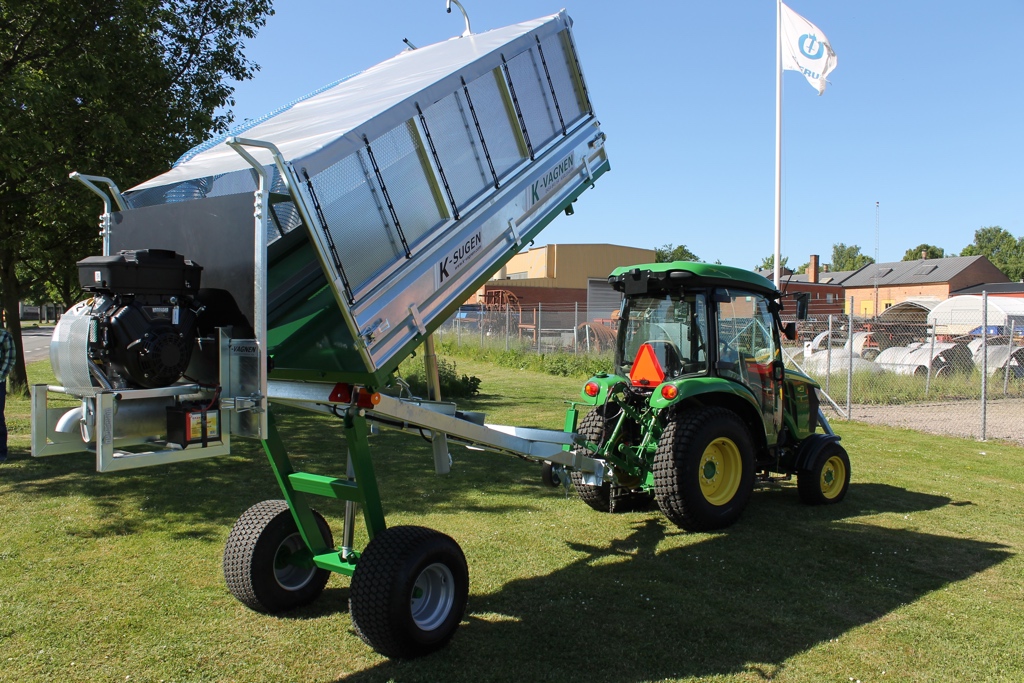

3-Way High tipping premium wagons are based on the 3-way tipping version, with a special construction added. This feature raise the whole wagon prior to tipping, which results in that you can tip into containers or higher up in existing piles. Very popular together with our leafloaders solutions.
Standard equipped with:
Popular Accessories:
| 3-Way High Tipping | 1600HT3 | 1800HT3 | 2000HT3 | 3000HT3 | 4000HT3 |
|---|---|---|---|---|---|
| Total length | 3600 mm | 3600 mm | 3800 mm | 4200 mm | 4200 mm |
| Total width | 1310 mm | 1310 mm | 1570 mm | 1570 mm | 1570 mm |
| Bed dimension | 2500*1250*30 mm | 2500*1250*30 mm | 2500*1500*30 mm | 3000*1500*30 mm |
3000*1500*30 mm |
| Volume, m³ | 1,0 | 1,0 | 1,125 | 1,35 | 1,35 |
| Tipping Angle° | 50 | 50 | 50 | 50 | 50 |
| Net Weight kg | 500 | 500 | 550 | 600 | 800 |
| Max Load kg | 1.600 | 1.800 | 2.200 | 3.000 | 4.000 |
| Total Weight kg | 2.100 | 2.300 | 2.750 | 3.600 | 4.800 |
| Wheel | 26 x 12 x 12 - 8pr | 26 x 12 x 12 - 8pr | 26 x 12 x 12 - 8pr | 400/60 - 15,5 - 14pr | 400/60 - 15,5 - 14pr |
| High tipping height m | 1.450 | 1.450 | 1.500 | 1.650 | 1.6 |
